Control Unit 1

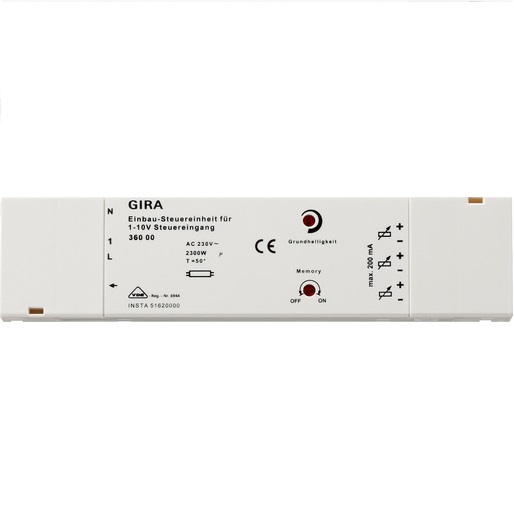

Control Unit 1 – 10 V

Features
– Built-in control unit for switching and dimming fluorescent lamps using electronic ballast with 1–10 V control input or Gira Tronic
transformers with 1–10 V control input.
– Operation is possible using mechanical push buttons.
– Bulb-saving switch-on.
– Memory function (brightness memory).

Technical data
Rated voltage: AC 230 V, 50 Hz
Connected load of switching contact
– Ohmic load: 2300 W
– Gira Tronic transformer: type dependent
– Electronic ballasts: type dependent
1 – 10 V interface
– Control voltage: 1 to 10 V
– Control current: max. 200 mA
Cable length
– Control cable: max. 100 m
– Load: max. 100 m
Auxiliary units: unlimited
Connections: max. 4 mm²
Ambient temperature: max. +50 °C

Dimensions in mm: W175 H42 D18
