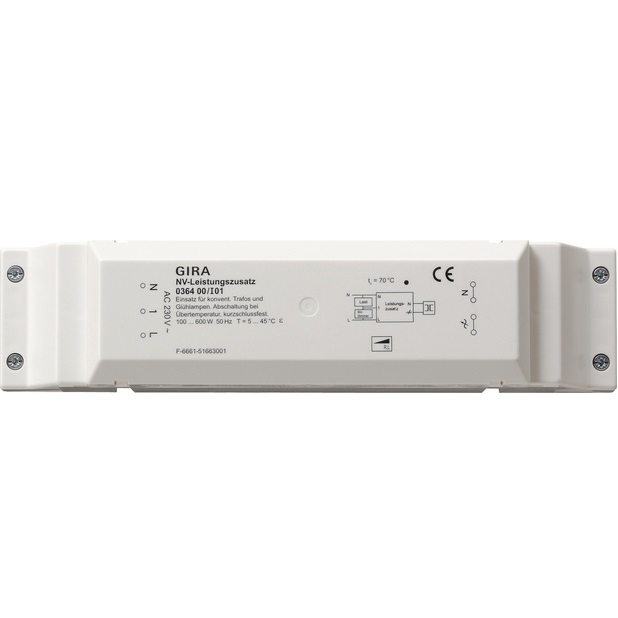

LV power booster ---- 100

LV power booster ---- 100 – 600 W ----

Features
– LV power booster for the power expansion of LV dimmers by up to 600 VA.
– By connecting up to ten power boosters in parallel, extensive lighting systems of LV halogen lamps with inductive transformers or 230 V
light bulbs can be controlled with one dimmer.
– Use the same phase for LV dimmer and LV power booster.
– Bulb-saving switch-on.
– Integrated electronic short-circuit protection.
– Automatic excess-temperature protection with restart.

Technical data
Rated voltage: AC 230 V, 50 Hz
Connected load
– Light bulbs: 100 to 600 W
– HV halogen lamps: 100 to 500 W
– Wound transformer: 100 to 600 VA
– Ohmic-inductive: 100 to 600 VA
Number of power boosters: max. 10
Cable length of the load cable: max. 100 m
Connections: max. 4 mm²
Ambient temperature: +5 °C to +45 °C

Dimensions in mm: W212 H49 D46
