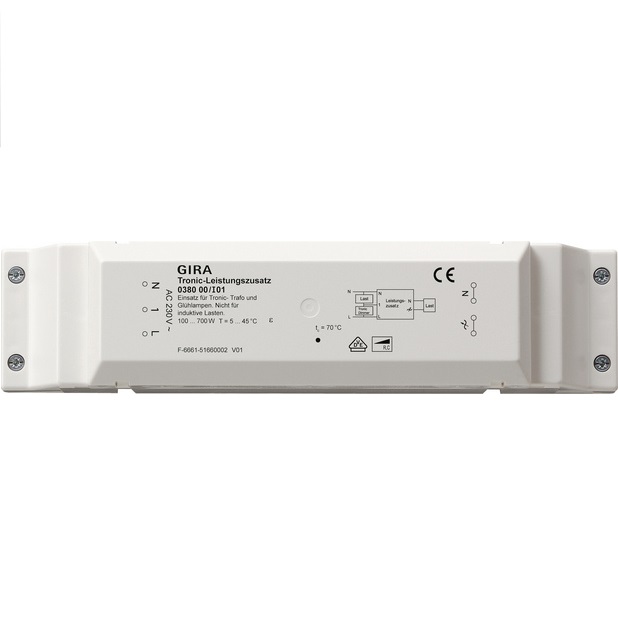

-------- Tronic power booster -------- 100

-------- Tronic power booster -------- 100 – 700 W

Features
– Tronic power booster for the power expansion of Gira Tronic dimmers and Gira universal dimmers by up to 700 W.
– By connecting up to ten power boosters in parallel, extensive lighting systems of Gira Tronic transformer, 230 V light bulbs, and highvoltage
halogen lamps can be controlled with one dimmer.
– Use the same phase for the Tronic dimmer and Tronic power booster.
– Bulb-saving switch-on.
– Integrated electronic short-circuit protection.
– Automatic excess-temperature protection with restart.

Technical data
Rated voltage: AC 230 V, 50 Hz
Connected load
– Light bulbs: 100 to 700 W
– HV halogen lamps: 100 to 700 W
– Gira Tronic transformer: 100 to 700 W
– Ohmic-capacitive: 100 to 700 W
Number of power boosters: max. 10
Cable length of the load cable: max. 100 m
Connections: max. 4 mm²
Ambient temperature: +5 °C to +45 °C

Dimensions in mm: W212 H49 D46
