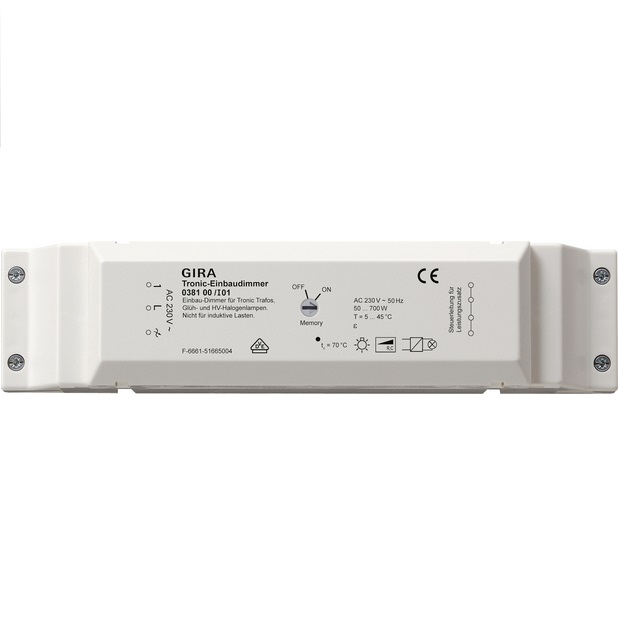

-------------------------------------------- Tronic built-in dimmer

Features
– Dimming of light bulbs, HV halogen lamps, or LV halogen lamps with Gira Tronic transformers with AC 230 V, 50 Hz.
– Switching and dimming commands are performed by operating auxiliary units (mechanical push buttons, NO contacts).
– Electronic short-circuit protection.
– Excess-temperature protection.
– Can be switched over to memory function (brightness memory).
– Power expansion using power boosters.

Technical data
Rated voltage: AC 230 V, 50 Hz
Connected load
– Light bulbs: 50 to 700 W
– HV halogen lamps: 50 to 700 W
– Gira Tronic transformer: 50 to 700 W
– Ohmic-capacitive: 50 to 700 W
Cable length
– Auxiliary unit: max. 100 m
– Load: max. 100 m
Auxiliary units: unlimited
: max. +45 °C

Dimensions in mm: W212 H49 D46
